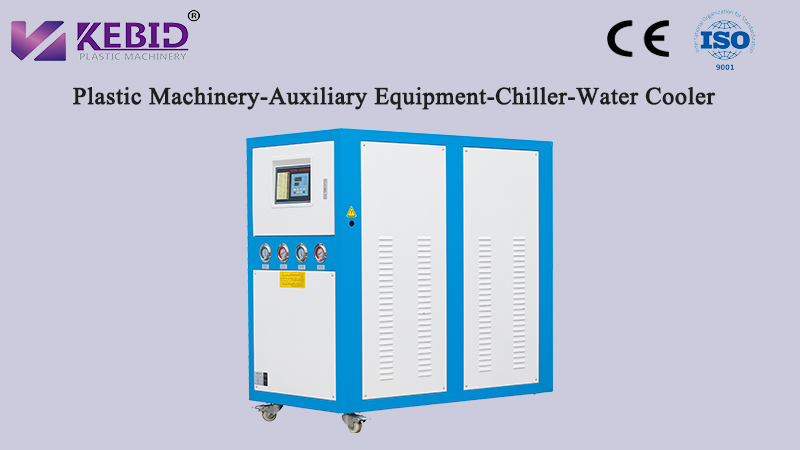

Plastic Machinery-Auxiliary Equipment-Chiller Water Cooler

Description

Compressor is used COPELAND brand which in the USA.The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in taiwan and all parts of cooling system are imported from the USA Mexico.Denmark, Japan.
Equipped with shell pipe condenser and stainless cased evaporator, which are quite easy to be cleaned and maintained ,there is automatic water supplying device in the water tank , Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and distict of poor water quailty.
Large than model XC-20 are assembled 2 sets or 4 sets of compressors ,so they are able to used as separate or together to reduce the resource waste.
Equirpped with figure intellectualized temperature controls ,which can accurately measure and control water temperature within the range of the 5-35°C.

Specification		3AC	5AC	8AC	10AC	12AC	15AC	20AC
Cooling Capacity	(Kacl/h)	6800	12040	19000	25200	34400	37000	45000
Compressor	All-Closed Vorticity
Compressor Power	Kw	2.5	4.4	7	9	10.2	13.4	18
Refrigerant	R22
Chilled water pump power	Kw	0.75	0.75	0.75	0.75	1.5	1.5	2.2
Max flow rate of chilled water	L/Min	55	120	120	200	400	400	400
Max pressure	M	9	9	9	16	20	20	20
Flow water inlet and outlet pipe	“	1”	1”	1”	1.5”	1.5”	1.5”	1.5”
Condensing fan power	Kw	0.25	0.5	0.5	0.5	0.5	1	1
Size length	mm	1030	1100	1220	1220	1220	1220	1700
Size width	mm	680	700	800	930	930	1050	1100
Size Height	mm	1270	1400	1450	1600	1600	1600	1920
Water tank capacity	L	53	88	120	200	200	240	380
Weight	Kg	210	290	400	450	500	550	700
